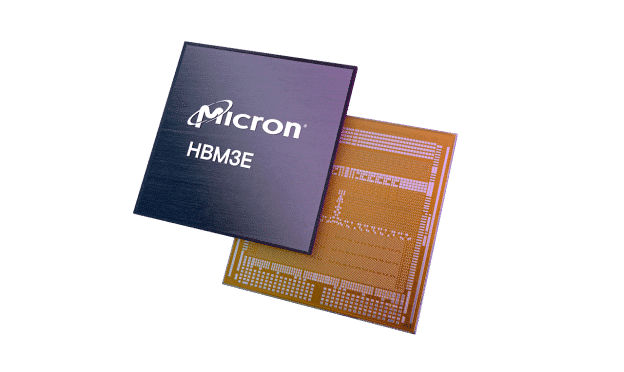

Introducing Micron’s HBM3E: A Breakthrough in High Bandwidth Memory Technology

Micron has recently unveiled its groundbreaking HBM3E 12-high 36GB memory solution, marking a significant milestone in high-performance memory technology.

Key Features of Micron’s HBM3E:

• Increased Capacity: 36GB, a 50% improvement over current HBM3E 8-high solutions.
• Outstanding Performance: Memory bandwidth exceeding 1.2 terabytes per second (TB/s) with pin speeds surpassing 9.2 gigabits per second (Gb/s).
• Energy Efficiency: Significantly lower power consumption compared to competing HBM3E 8-high 24GB solutions.
• Enhanced Integration: Fully programmable MBIST capabilities for improved testing and accelerated validation.

This innovation is designed to support large-scale AI models like Llama 2 (70 billion parameters) by minimizing CPU delays and optimizing GPU-to-GPU communication.

What Is High Bandwidth Memory (HBM)?

High Bandwidth Memory (HBM) is a cutting-edge type of dynamic random-access memory (DRAM) engineered to deliver exceptional bandwidth and energy efficiency. HBM is pivotal for applications requiring top-tier performance, such as advanced graphics processing, artificial intelligence (AI), data analytics, and high-performance computing (HPC).

Key Characteristics of HBM:

1. High Bandwidth: HBM provides significantly faster data transfer rates than conventional memory types like GDDR, leveraging dense and short interconnections.
2. 3D Stacked Architecture: HBM employs a 3D stacking method, with multiple DRAM layers interconnected vertically via Through-Silicon Vias (TSVs). This reduces the physical footprint while enhancing density and speed.
3. Processor Integration: HBM is closely integrated with GPUs or CPUs via silicon interposers, minimizing latency and maximizing data transfer speeds.
4. Energy Efficiency: HBM consumes less power per bit of data transferred compared to other high-performance memories, thanks to its optimized structure.
5. Compact Design: The 3D integration allows HBM to occupy significantly less space on the PCB compared to traditional memory modules.

Applications of HBM:

• High-End Graphics Cards: Advanced GPUs from AMD and NVIDIA utilize HBM for demanding computational and graphical tasks.
• Supercomputers: HBM powers intensive computational systems handling massive datasets.
• Artificial Intelligence: Accelerators like NVIDIA Tensor Cores and Google TPUs leverage HBM for processing complex AI models.
• Telecommunications: HBM supports high-bandwidth, low-latency requirements in network and telecom systems.

The Role of SSDs in Systems Using HBM

While HBM delivers unparalleled performance in high-speed computations, it is often limited in capacity. SSDs (Solid State Drives) complement HBM by providing scalable secondary storage for data-intensive applications. Here’s why SSDs are indispensable in such systems:

Data Hierarchy Optimization:

• HBM: Handles immediate, high-speed computations.
• Main Memory (DDR): Manages temporary processing of less critical data.
• SSD (NVMe): Ensures rapid storage and retrieval of queued data or intermediate results.

Fast NVMe SSDs (based on PCIe Gen4 or Gen5 standards) significantly reduce latency when transferring data between storage and HBM.

Recommendations for SSD Selection:

1. NVMe PCIe Gen4/Gen5 SSDs: Ideal for maximizing data transfer rates.
2. High Endurance: Industrial-grade SSDs with high write endurance (e.g., eTLC or 3D XPoint) are well-suited for heavy workloads.
3. Capacity Flexibility: Options ranging from 1TB to several terabytes, depending on application needs.
4. Advanced Data Security: SSDs featuring hardware encryption (e.g., TCG Opal 2.0) and error correction ensure data integrity.

Why Choose Mozaïk Storage?

Mozaïk Storage specializes in providing top-quality SSD solutions (E1.S PCIe NVMe, U.3 PCIe NVMe, U.2 PCIe NVMe, 2,5 SATA) tailored for diverse industrial applications. Our expertise ensures that every product meets the rigorous demands of modern technologies, including systems utilizing HBM.

What We Offer:

• A comprehensive range of high-performance SSDs for AI, HPC, and enterprise systems.
• Solutions designed for reliability, speed, and scalability.
• Exceptional customer support to guide you in selecting the best products for your needs.
• The best partners (Swissbit, UDinfo, APRO, Exascend, Intelligent Memory)

Unlock Your System’s Full Potential with Mozaïk Storage

Contact us today to explore our extensive lineup of SSD solutions. Whether you’re upgrading your current setup or building a system from scratch, Mozaïk Storage is here to help you achieve unmatched performance and efficiency.
