Protect Your Embedded Systems with Swissbit’s Security Upgrade Kit. AES 256 Security, Configurable Access Control, and Secure Boot

Discover the Swissbit Security Upgrade Kit, an essential solution to enhance data security in embedded systems. Specifically designed for Linux systems, this kit secures access to sensitive information, such as configuration identifiers and licenses.

The Security Upgrade Kit offers numerous advanced security features. At the forefront, real-time AES 256 encryption ensures that your data cannot be stolen, copied, or tampered with. Additionally, configurable access control allows for tailored protection profiles, blocking unauthorized access. A secure boot function also ensures the safe start-up of essential firmware and applications, strengthening data integrity.

Available in microSDHC and microSDXC formats, the kit comes in capacities of 16GB, 32GB, and 64GB. It provides impressive performance, adhering to SD 6.10 memory card specifications, all while maintaining optimal protection against cyber threats.

Built to industrial-grade standards, the Security Upgrade Kit is ideal for applications requiring high endurance with its pSLC flash memory. It supports up to 20,000 insertion/removal cycles and operates within an industrial temperature range of -40°C to 85°C, with storage temperature support up to 100°C.

With the rise in cyber threats, it is crucial for your embedded systems to comply with global cybersecurity regulations. The Security Upgrade Kit meets various standards, including those in Europe and the U.S., making it suitable for diverse sectors such as industry, public service, and critical infrastructure.

Perfect for retrofit solutions, especially for devices like Raspberry Pi, it integrates seamlessly into existing systems. Comprehensive documentation, tutorials, and community resources simplify adoption.

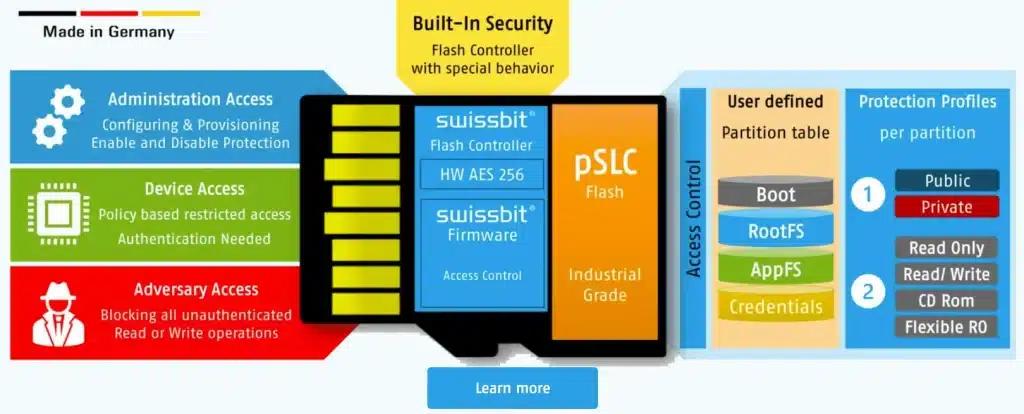

Key features of the kit include 256-bit self-encrypting flash memory, individually configurable protection profiles, and various tools for lifecycle monitoring, firmware updates, security settings, and access control.

Don’t leave your embedded systems vulnerable to attacks. With Swissbit’s Security Upgrade Kit, create a secure, reliable, and compliant digital environment.

For more information on the Security Upgrade Kit and to place an order, contact the Mozaïk Storage team.

Product Specifications

• Capacities: 16GB, 32GB, 64GB – High-Endurance pSLC Flash Memory
• Format: Standard microSD Card – 15.0 mm x 11.0 mm x 0.7 mm (1.0 mm)
• Compliance: Fully compliant with SD 6.10 memory card specifications
• SDHC default/high-speed modes and UHS supported
• Speed Class 10/U3/V30/A1 according to SD6.10 specification
• 16–32GB in FAT32 and 64GB in exFAT

Performance:

• Modes: SD Default Speed, SD High Speed, SD UHS-I
• Read Performance: Sequential up to 90 MB/s, random read up to 1500 IOPS
• Write Performance: Sequential up to 75 MB/s, random write up to 1600 IOPS
• Operating Temperature Range: Industrial: -40°C to 85°C
• Storage Temperature Range: Industrial: -40°C to 100°C
• Operating Voltage: 2.7–3.6V in normal operation (Low-power CMOS technology)
• Data Retention: 10 years at start of life / 1 year at end of life
• Humidity: 85% RH @ 85°C for 1000 h
• Electromagnetic Compatibility Testing: Radiated emission; Radiated immunity; Electrostatic discharge
• Radio Equipment Directive (RED) and Cyber Resilience Act of 2027

SFSD016GN1PT1TB-I-5E-02P-SW8, SFSD032GN1PT1TB-I-6F-02P-SW8, SFSD064GN1PT1TB-I-7G-02P-SW8
PS-66u Security Upgrade Kit
