Swissbit D2200 PCIe Gen5 eSSD: Performance and Efficiency for Enterprise Servers and Edge Data Centers

Swissbit is proud to announce the launch of its first series of PCIe Gen5 eSSD – the D2200 series! And so are we!

Designed for enterprise servers and edge data centers, this series offers exceptional performance with sequential read speeds of up to 14 GB/s and sequential write speeds of up to 10 GB/s. The new eSSD also excels in energy efficiency, with a sequential read performance reaching 970 MB/s per watt. This efficiency also impacts thermal management, thanks to an optimized hardware design and firmware enhancements that reduce heat generated by the server by up to 20°C!

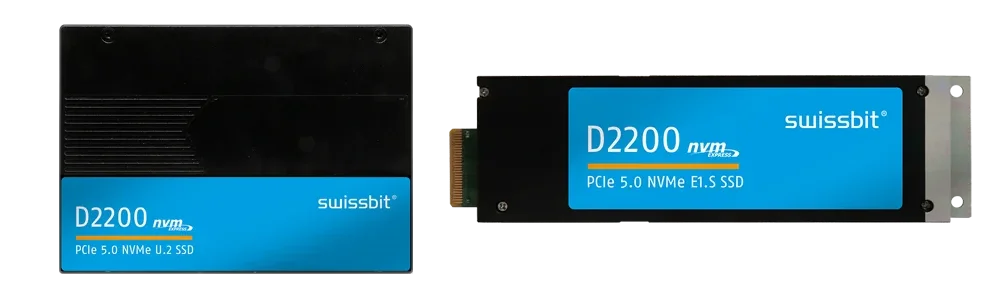

Compatible with PCIe Gen4, the series supports NVMe 2.0 and OCP 2.0, ensuring future viability. Comprehensive data protection features, including TCG Opal 2.0, are integrated. The D2200 series will be available in U.2 and E1.S formats with capacities of 8 TB and 16 TB by the end of August, with a 32 TB version in U.2 format expected by the end of 2024.

The new D2200 series offers exceptional performance with minimal latency. Random access reaches up to 2.6 million IOPS for read and 500,000 IOPS for write, ensuring smooth and consistent performance for latency-sensitive applications. The enterprise SSD supports the NVMe Management Interface 1.2b (NVMe-MI) specification for efficient disk management and monitoring, even in the event of a primary system failure. With support for up to 128 namespaces, the D2200 also provides great flexibility and efficiency for cloud application virtualization and data management.

D2200 references in U.2: 7.68TB SD2200UD7T68C-1MBA-1GA-STD and 15.4TB SD2200UD15T4C-1MBA-1GA-STD and 30.7TB (coming soon)

D2200 references in E1.S: 7.68TB SD2200EB7T68C-1MBA-1GA-STD and 15.4TB SD2200EB15T4C-1MBA-1GA-STD

Key Features

Exceptional Performance:

• Sequential read speed of up to 14 GB/s
• Sequential write speed of up to 10 GB/s

Unmatched Energy Efficiency:

• Read performance of up to 970 MB/s per watt
• Optimized design reducing heat generated by the server by up to 20°C

Storage Capacities:

• Available in U.2 and E1.S formats with capacities of 8 TB and 16 TB
• 32 TB version available soon

Main Benefits:

• Compatibility: Supports NVMe 2.0 and OCP 2.0, backward compatible with PCIe Gen4
• Optimized Thermal Management: Reduces heat generation by up to 20°C, improving thermal management efficiency
• Flexibility and Efficiency: Up to 128 namespaces for flexible management of cloud applications and data virtualization
• Power Modes: Options ranging from 12 to 25 watts for precise and dynamic performance control

Data Security and Protection:

Comprehensive Security Features:

• AES256 Encryption
• Crypto Erase
• TCG Opal 2.0
• Secure Boot

Availability:

Swissbit D2200 eSSD will be available at the end of August in U.2 (15 mm) format with capacities of 7.68 TB and 15.36 TB, and in E1.S (9.5 mm) format with a capacity of 7.68 TB. By the end of 2024, a 15.36 TB version in E1.S format and a 30.72 TB version in U.2 format will also be available.

Contact Us

For samples and support, please contact the Mozaik Storage team at: [email protected]
